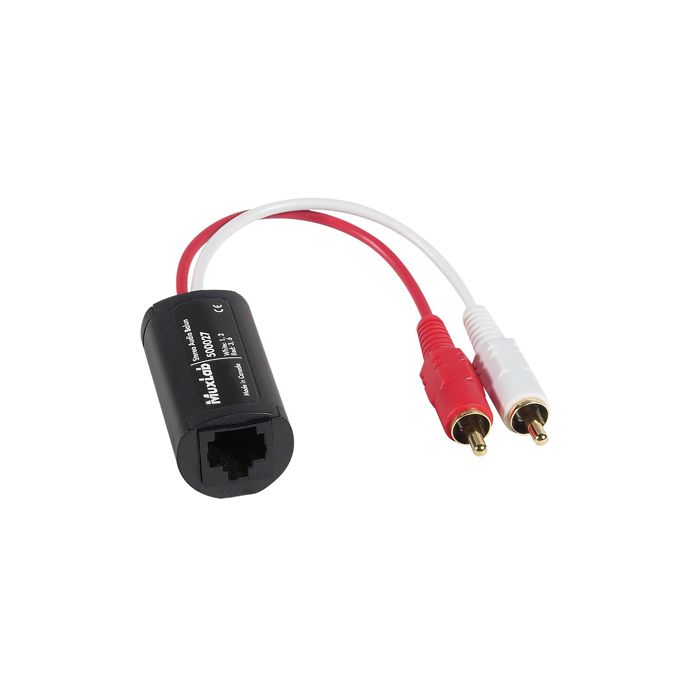

Cablenet Muxlab Stereo Audio Balun (RCA)
Professional stereo audio balun designed for long-distance analogue audio transmission over a single Cat5e or Cat6 cable. With colour-coded RCA connectors and passive operation, it enables clean, reliable line-level audio distribution across commercial AV, education, hospitality and office environments. Compatible with other Muxlab baluns including 500030, it supports extended point-to-point runs up to 5,000ft while maintaining dependable performance for music, paging and media playback systems.
SKU
358311
MPN
M500027
EAN
5056750326797
- Stereo RCA to Cat5e/Cat6 audio extension
- Long-distance line-level analogue transmission
- Passive design for simple installation
- Compatible with Muxlab 500030 systems
- Suited for commercial AV and structured cabling
Customers Also Bought
Cablenet BNC Crimp Plug RG179 Diecast Handy Pack (PK 100)SKU358253MPN: BNC2-179DEAN: 5056750318976UPC: 5056750318976Quantity Discounts Available
The MuxLab Stereo Audio Balun (500027) allows an unbalanced line-level stereo analogue audio signal to be transmitted via single Cat5e/Cat6 cable in a point-to-point connection to distances of up to 5,000ft/1.5km.
The product is designed for audio applications where mid-range audio frequency response is paramount.
Used in pairs, the Stereo Audio balun can also be used with the 500030 audio balun to connect an RCA interface to a 3.5mm audio interface (or vice-versa).
For increased frequency response to between 20Hz and 20kHz, please see the MuxLab 500028 range.
Extend audio signal distances up to 5,000ft/1.5km via single Cat5e/Cat6
Frequency response: 60Hz to 20kHz (up to 1,000ft/305m); 100Hz to 20kHz (to max distance)
Colour coded RCA cable leads (male plugs)
Dimensions: 1.875 inch x 1 inch diameter (47 x 25mm diameter) plus dual 6 inch (152mm) leads to RCA connectors
Weight: 1.0oz/0.028kg
This product features MuxLab's Limited Lifetime Warranty - see website for more information
Compatible with MuxLab part: 500030 (3.5mm stereo jack plug)
The product is designed for audio applications where mid-range audio frequency response is paramount.
Used in pairs, the Stereo Audio balun can also be used with the 500030 audio balun to connect an RCA interface to a 3.5mm audio interface (or vice-versa).
For increased frequency response to between 20Hz and 20kHz, please see the MuxLab 500028 range.
Extend audio signal distances up to 5,000ft/1.5km via single Cat5e/Cat6
Frequency response: 60Hz to 20kHz (up to 1,000ft/305m); 100Hz to 20kHz (to max distance)
Colour coded RCA cable leads (male plugs)
Dimensions: 1.875 inch x 1 inch diameter (47 x 25mm diameter) plus dual 6 inch (152mm) leads to RCA connectors
Weight: 1.0oz/0.028kg
This product features MuxLab's Limited Lifetime Warranty - see website for more information
Compatible with MuxLab part: 500030 (3.5mm stereo jack plug)
