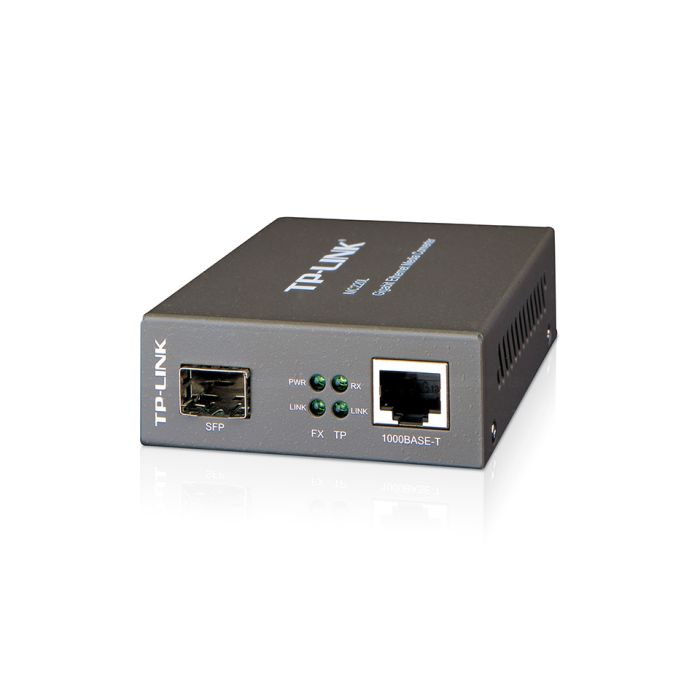

TP-Link MC220L network media converter 1000 Mbit/s Multi-mode, Single-mode Black
TP-Link Gigabit SFP Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.1ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Fiber optic connector: SFP, Connectivity technology: Wired. Maximum transfer distance: 10000 m, Fiber mode structure: Multi-mode, Single-mode. LED indicators: Link, Product colour: Black, Compliance industry standards: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x. Power consumption (max): 1.7 W
SKU
203580
MPN
MC220L
- 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC-Type connector. The MC220L supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINKs 19system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC-Type connector. The MC220L supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINKs 19system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
Weight
0.490000
Fiber Ports Quantity
1
MPN
MC220L
Storage Relative Humidity H H
5 - 90%
Vendor
TP-LINK
Ethernet LAN Data Rates
1000 Mbit/s
Piece Gross Weight
0.49 KG
Piece Height (mm)
65
Piece Length (mm)
204
Piece Qty
1
Piece Width (mm)
165
Product Colour
Black
Fiber Optic Connector
SFP
Ethernet Interface Type
Gigabit Ethernet
Maximum Data Transfer Rate
1000 Mbit/s
Networking Standards
IEEE 802.1ab, IEEE 802.3x, IEEE 802.3z
Connectivity Technology
Wired
Package Height
6.5 cm
Package Depth
16.5 cm
Piece Height (mm)
65
Piece Length (mm)
204
Piece Width (mm)
165
Width
9.45 cm
Depth
7.3 cm
Height
2.7 cm
Package Width
20.4 cm
