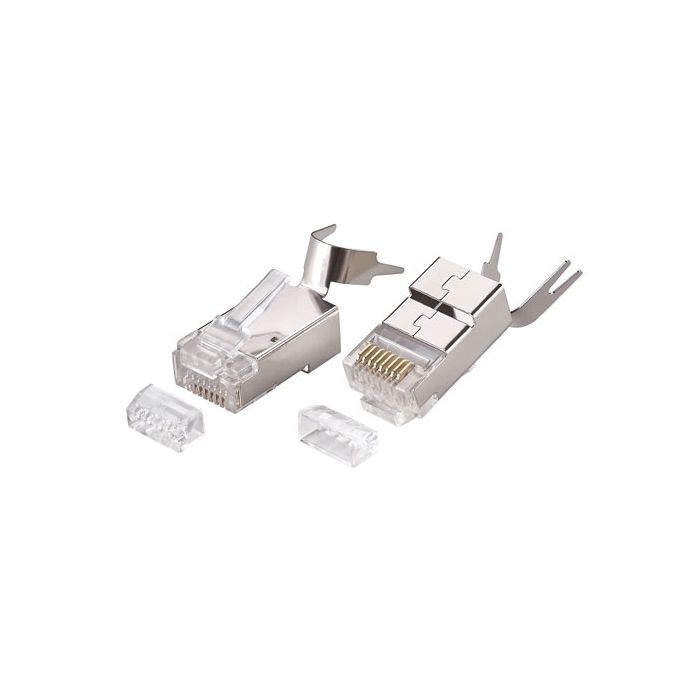

Cablenet 10PK Cat6a RJ45 FTP Crimp Plug Large 8mm OD (PK10) - Need Tool 87-2810

High performance shielded connector suitable for termination of extra large outer diameter cables for Category 6 and Category 6A.

Accepts cable diameter up to 8mm.

3 prong contacts accepts solid or stranded cable.

Requires the matched crimp tool 87-2810.

RJ45 cables can be terminated in two different ways as defined in TIA/EIA-568. One version is called T-568A and the other is T-568B.
Both wiring standards are listed below

T-568B - Most common wiring scheme
1 - White/Orange (Transmit +)
2 - Orange (Transmit -)
3 - White/Green (Receive +)
4 - Blue
5 - White/Blue
6 - Green (Receive -)
7 - White/Brown
8 - Brown

T-568A
1 - White/Green (Receive +)
2 - Green (Receive -)
3 - White/Orange (Transmit +)
4 - Blue
5 - White/Blue
6 - Orange (Transmit -)
7 - White/Brown
8 - Brown
