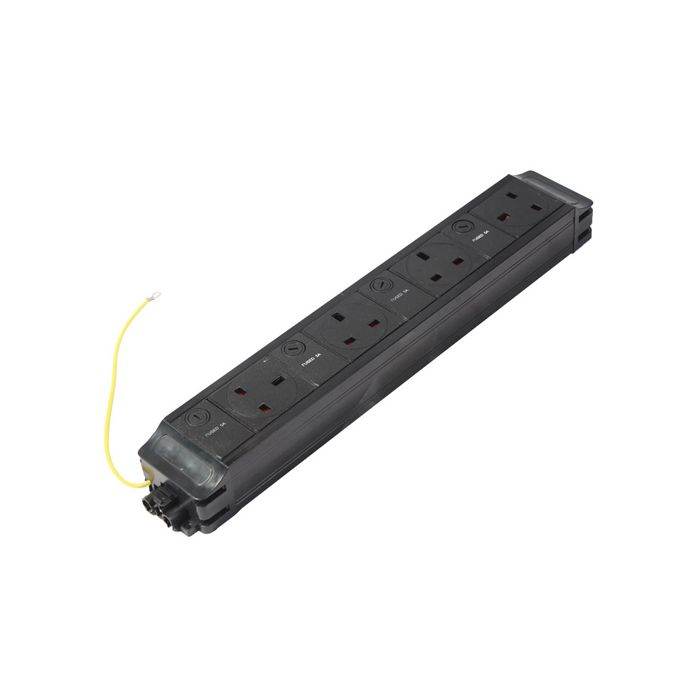

Cablenet Underdesk PDU 4 x 5A UK Individually Fused
Underdesk PDU 4 x 5A UK Individually Fused is an unswitched 4-way underdesk power unit with four individually fused UK sockets for tidy power at desks and workstations. Each outlet on this model is rated at 5A and housed in a PVC body. A 20A male 3-pole mains connector and 3-pole input/output support distribution and daisy chaining using inter leads, while mounting brackets at each end suit wire basket cable management or direct fixing. PVC construction is used, maximum voltage is 250V, fuses are user-replaceable 5x20mm ceramic slow-blow, and a 150mm earth lead to a ring terminal is supplied.
SKU
355771
MPN
PDP-PACK-4
EAN
5056750330633
- Unswitched 4-way underdesk PDU with 4 individually fused UK sockets
- 20A male 3-pole connector with 3-pole input/output for distribution and daisy chaining
- Compact 334 x 42.5 x 62mm body with mounting brackets for wire basket tie-in or underdesk fixing
- PVC extrusion body with PVC sockets and fascias; maximum voltage 250V
- User-replaceable 5x20mm ceramic slow-blow fuses and 150mm earth lead to ring terminal
In Stock
Units Ready to Ship: 19 Next Working Day Delivery Available
P-Pack under desk unit with 4 individually fused UK sockets
The modular under-desk units are not pre-wired, you will need to order the appropriate length PDSTART-# lead to connect to the main power supply and the PDINTER-# if you are daisy-chaining units together.
5A individually fused UK sockets
GST18 input allows any length of START lead - 1m to 6m and custom lengths
Daisy chained via the GST18 output and use of INTER leads - 0.5m to 3m and custom lengths
Can be used in a cable tray or mounted directly to the desk
Master switch or individually switched options available
The modular under-desk units are not pre-wired, you will need to order the appropriate length PDSTART-# lead to connect to the main power supply and the PDINTER-# if you are daisy-chaining units together.
5A individually fused UK sockets
GST18 input allows any length of START lead - 1m to 6m and custom lengths
Daisy chained via the GST18 output and use of INTER leads - 0.5m to 3m and custom lengths
Can be used in a cable tray or mounted directly to the desk
Master switch or individually switched options available
Vendor
Cablenet
MPN
PDP-PACK-4
EAN
5056750330633
Weight
0.420000
Product Type
Power Distribution Unit
Connector 1
GST18
PDU Types
Basic
Mounting
Under Desk
Power Plug
GST18
AC Outlets Quantity
4
AC Outlet Types
UK Socket
Product Colour
Black
Piece Qty
1
Piece Gross Weight
0.42 KG
Piece Height (mm)
70
Piece Length (mm)
435
Piece Width (mm)
50
Connector 1
GST18 Male
Connector 1
GST18 Male
Piece Height (mm)
70
Piece Length (mm)
435
Piece Width (mm)
50
