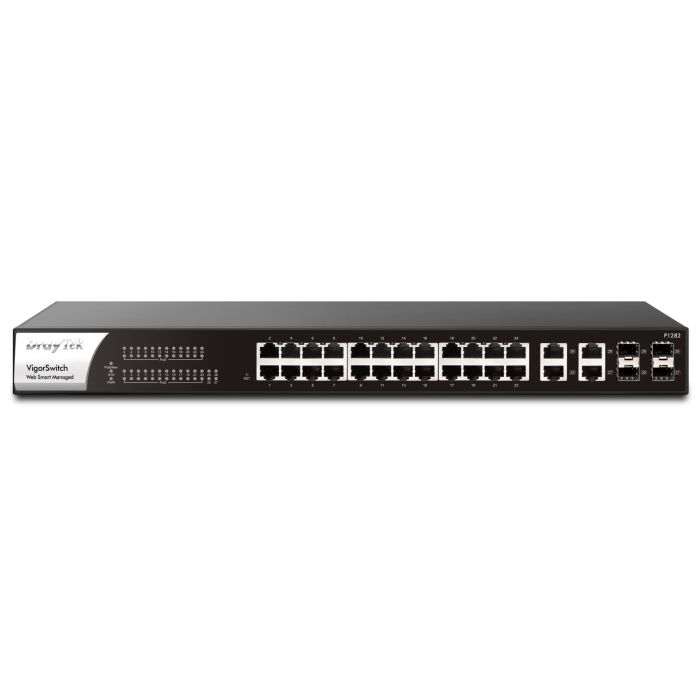

VigorSwitch P1282 28-Port Gigabit PoE+ Switch

SKU
276886
MPN
VSP1282-K
The VigorSwitch P1282 is a high-performance, Smart Managed Gigabit Ethernet switch with 4 SFP uplink ports. With 24 PoE+ (Power over Ethernet) RJ-45 LAN ports, it's ideal for powering connected IP phones, IP cameras and wireless access points. The 400 watt PoE power budget provides ample power through Ethernet, to each of its 24 PoE / PoE+ enabled Gigabit LAN ports. Designed for centralised management, the VigorSwitch P1282 can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system and/or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.
  • 24 x RJ-45 Gigabit Ethernet Ports with PoE+
  • 4 x RJ-45 / SFP Gigabit Ethernet Ports
  • 400-watt Power-over-Ethernet budget for demanding applications
  • Cloud Managed with VigorACS
  • 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
Enquiry

VigorSwitch P1282

Smart Managed Gigabit Switch with 24 Gigabit PoE+ Ports & 4 SFP Ports

The VigorSwitch P1282 is a high-performance, Smart Managed Gigabit Ethernet switch with 4 SFP uplink ports. With 24 PoE+ (Power over Ethernet) RJ-45 LAN ports, it's ideal for powering connected IP phones, IP cameras and wireless access points.

The 400 watt PoE power budget provides ample power through Ethernet, to each of its 24 PoE / PoE+ enabled Gigabit LAN ports.

Designed for centralised management, the VigorSwitch P1282 can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system and/or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.

Power over Ethernet

The VigorSwitch P1282 is a 24-port PoE (Power over Ethernet) switch, providing power on all ports to any PoE-enabled device, such as IP phones, wireless access points or IP cameras over the Ethernet cable.

As well as removing the need for local (at the desk) power supplies, making for tidier installations, PoE ensures power efficiency, providing only the power needed, as well as allowing for time schedules for powering up/down and remote rebooting.

Power is provided only when required and allows for installation of devices where there is no mains power, particularly useful for wireless access points such as the ceiling mounted VigorAP 912C.

The VigorSwitch P1282 has 24 PoE ports with a power budget of up to 400 watts for all connected PoE devices, allowing for connection of both standard PoE (802.3af) and High-Power PoE (802.3at) devices at up to 30 watts per port.

Power over Ethernet Management

Device Check

The Device Check feature can monitor connectivity to a device / remote IP - if it stops responding, for instance an IP camera stops transmitting - the VigorSwitch will automatically power cycle the port it's connected to, allowing it to restart and work normally again.

Scheduling

Set time schedules to turn connected PoE devices on/off at certain times of the day, for instance turning off wireless access points overnight.

Save power and prevent network access outside of the set operation times.

PoE Priority

In the event that the PoE power usage exceeds the power budget of the switch, important devices can be given priority so that they remain on. Less important devices can be turned off by the switch, to ensure constant operation of essential systems.

Central Management

The DrayTek VigorSwitch P1282 can operate in standalone mode and be managed through its web interface or, if you need to manage and monitor the switch remotely, or have several DrayTek VigorSwitches to administer, you can centrally manage and monitor them either with:

Router - Switch Management Manage VigorSwitches connected to a router and determine network topology at a glance
DrayTek VigorACS Manage and Provision DrayTek VigorSwitches on any network, from anywhere
DrayTek VigorConnect Manage and Provision VigorSwitches and VigorAPs on a single site

Managing a VigorSwitch through VigorACS

DrayTek's VigorACS central management system provides a centralised way to manage and view the status of any DrayTek Vigor router, VigorAP access point and VigorSwitch connected to the VigorACS server.

DrayTek VigorSwitch switches that support TR-069 management can be managed through DrayTek VigorACS 2 in the same way that a DrayTek Vigor router or VigorAP access point would be managed. Through VigorACS, you can view and manage; a single VigorSwitch, all switches on a site or all switches across an entire network spanning multiple sites in one place.

DrayTek VigorSwitches connected to VigorACS connect directly to the VigorACS server to be managed, the router or network that they are connected to needs no additional configuration beyond the VigorSwitch having access to the Internet (or if your VigorACS server is located across a private WAN / VPN connection, access to that network).

Dashboard view

View the state of a VigorSwitch through the Dashboard, with PoE usage, uptime and connected ports all visible in one place:

Switch Configuration

View the configuration of a VigorSwitch and make changes to the configuration through VigorACS, then copy the settings from that switch to apply them to multiple VigorSwitch switches:

Power Over Ethernet Poe
Yes
Web Based Management
Yes
Jumbo Frames Support
Yes
Rack Mounting
Yes
Power Supply Included
Yes
Power Over Ethernet Poe Ports Quantity
24
Switching Capacity
56 Gbit/s
MPN
VSP1282-K
Basic Switching RJ 45 Ethernet Ports Quantity
24
Number of Fans
2
Vendor
Draytek
Storage Temperature T T
-20 - 70 °C
AC Input Voltage
100 - 240 V
Ethernet Lan Data Rates
10, 100, 1000 Mbit/s
Product Colour
Black,Silver
Width
44.1 cm
Depth
27.0 cm
Height
4.5 cm
Weight
4.35 kg
Management Protocols
(CLI) via SSH/Telnet, IPv4 & IPv6 Dual-Stack, LLDP, OpenVPN Client, SNMP, SNTP, Vigor Router Switch Management, VigorACS, VigorConnect
Form Factor
1U
Networking Standards
IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Width
44.1 cm
Depth
27.0 cm
Height
4.5 cm
