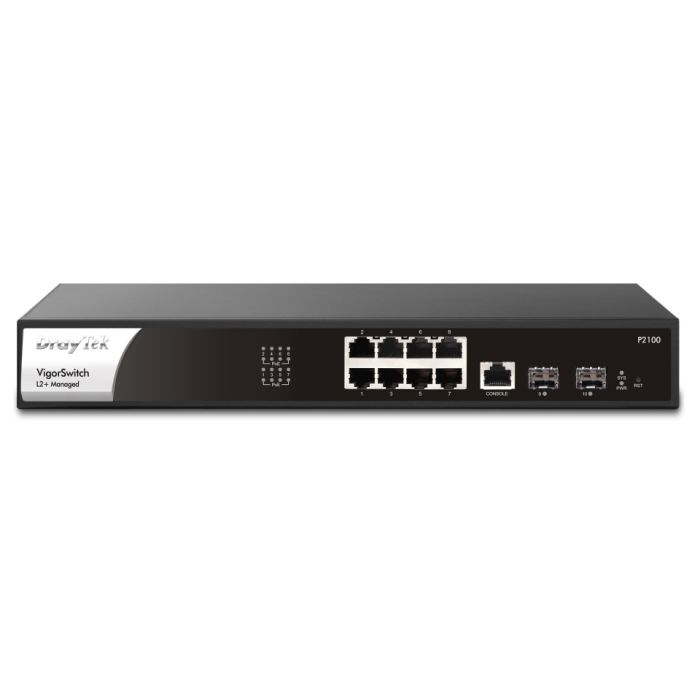

VigorSwitch P2100 8+2 Port Switch with PoE+

SKU
262334
MPN
VSP2100-K
The VigorSwitch P2100 is a high-performance, Layer 2+ Managed Ethernet switch. With 8 RJ-45 Gigabit LAN ports, it's ideal for adding network ports to a DrayTek Vigor router. The enterprise-level features allow your business to improve network stability and security. The VigorSwitch P2100 is able to power your network devices via Power over Ethernet, with a generous 140 watt power budget to provide power to each of its 8 PoE / PoE+ enabled Gigabit LAN ports. The VigorSwitch P2100 works superbly in standalone mode, but designed for centralised management, it can be provisioned and monitored by one of DrayTek’s central management platforms. These include the VigorACS management platform, VigorConnect on-site management and DrayTek’s router-based switch management These platforms allow you to drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.
  • 8 10/100/1000BaseT Ethernet Ports (RJ-45 IEEE 802.3/3u/ab)
  • 110 Watts Total Power Budget for PoE
  • Auto Detection of Powered Device (PD) and Consumption Levels
  • 802.1q Tag-based VLAN
  • Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
Enquiry

VigorSwitch P2100

8-Port Gigabit Layer 2+ Managed PoE+ Switch with 2 SFP Uplink Ports

The VigorSwitch P2100 is a high-performance, Layer 2+ Managed Ethernet switch. With 8 RJ-45 Gigabit LAN ports, it's ideal for adding network ports to a DrayTek Vigor router. The enterprise-level features allow your business to improve network stability and security.

The VigorSwitch P2100 is able to power your network devices via Power over Ethernet, with a generous 140 watt power budget to provide power to each of its 8 PoE / PoE+ enabled Gigabit LAN ports.

The VigorSwitch P2100 works superbly in standalone mode, but designed for centralised management, it can be provisioned and monitored by one of DrayTek’s central management platforms. These include the VigorACS management platform, VigorConnect on-site management and DrayTek’s router-based switch management These platforms allow you to drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.

Power over Ethernet

The VigorSwitch P2100 is an 8-port PoE (Power over Ethernet) switch, providing power on all ports to any PoE-enabled device, such as IP phones, wireless access points or IP cameras over the Ethernet cable. There are 2 additional SFP module slots for Ethernet and Fibre uplinks, with suitable SFP modules installed.

As well as removing the need for local (at the desk) power supplies, making for tidier installations, PoE ensures power efficiency, providing only the power needed, as well as allowing for time schedules for powering up/down and remote rebooting.

Power is provided only when required and allows for installation of devices where there is no mains power, particularly useful for wireless access points such as the ceiling mounted VigorAP 960C.

The VigorSwitch P2100 has a total power budget of up to 140 watts for all connected PoE devices, allowing for connection of both standard PoE (802.3af) and High-Power PoE (802.3at) devices at up to 30 watts per port.

Power over Ethernet Management

Device Check

The Device Check feature can monitor connectivity to a device / remote IP - if it stops responding, for instance an IP camera stops transmitting - the VigorSwitch will automatically power cycle the port it's connected to, allowing it to restart and work normally again.

Scheduling

Set time schedules to turn connected PoE devices on/off at certain times of the day, for instance turning off wireless access points overnight.

Save power and prevent network access outside of the set operation times.

PoE Priority

In the event that the PoE power usage exceeds the power budget of the switch, important devices can be given priority so that they remain on. Less important devices can be turned off by the switch, to ensure constant operation of essential systems.

Central Management

The DrayTek VigorSwitch P2100 can operate in standalone mode and be managed through its web interface or, if you need to manage and monitor the switch remotely, or have several DrayTek VigorSwitches to administer, you can centrally manage and monitor them either with:

Router - Switch Management Manage VigorSwitches connected to a router and determine network topology at a glance
DrayTek VigorACS Manage and Provision DrayTek VigorSwitches on any network, from anywhere
DrayTek VigorConnect Manage and Provision VigorSwitches and VigorAPs on a single site

Managing a VigorSwitch through VigorACS

DrayTek's VigorACS central management system provides a centralised way to manage and view the status of any DrayTek Vigor router, VigorAP access point and VigorSwitch connected to the VigorACS server.

DrayTek VigorSwitch switches that support TR-069 management can be managed through DrayTek VigorACS 2 in the same way that a DrayTek Vigor router or VigorAP access point would be managed. Through VigorACS, you can view and manage; a single VigorSwitch, all switches on a site or all switches across an entire network spanning multiple sites in one place.

DrayTek VigorSwitches connected to VigorACS connect directly to the VigorACS server to be managed, the router or network that they are connected to needs no additional configuration beyond the VigorSwitch having access to the Internet (or if your VigorACS server is located across a private WAN / VPN connection, access to that network).

Dashboard view

View the state of a VigorSwitch through the Dashboard, with PoE usage, uptime and connected ports all visible in one place:



Switch Configuration

View the configuration of a VigorSwitch and make changes to the configuration through VigorACS, then copy the settings from that switch to apply them to multiple VigorSwitch switches:

Power Over Ethernet Poe
Yes
Web Based Management
Yes
Jumbo Frames Support
Yes
Rack Mounting
Yes
Power Supply Included
Yes
Power Over Ethernet Poe Ports Quantity
8
Switching Capacity
20 Gbit/s
MPN
VSP2100-K
Basic Switching RJ 45 Ethernet Ports Quantity
8
Vendor
Draytek
Storage Temperature T T
-20 - 70 °C
AC Input Voltage
100 - 240 V
Ethernet Lan Data Rates
10, 100, 1000 Mbit/s
Product Colour
Black,Silver
Width
31.9 cm
Depth
20.8 cm
Height
4.4 cm
Weight
2.61 kg
Management Protocols
(CLI) via SSH/Telnet, IPv4 & IPv6 Dual-Stack, LLDP, OpenVPN Client, SNMP, SNTP, Vigor Router Switch Management, VigorACS, VigorConnect
Form Factor
1U
Networking Standards
IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Width
31.9 cm
Depth
20.8 cm
Height
4.4 cm
