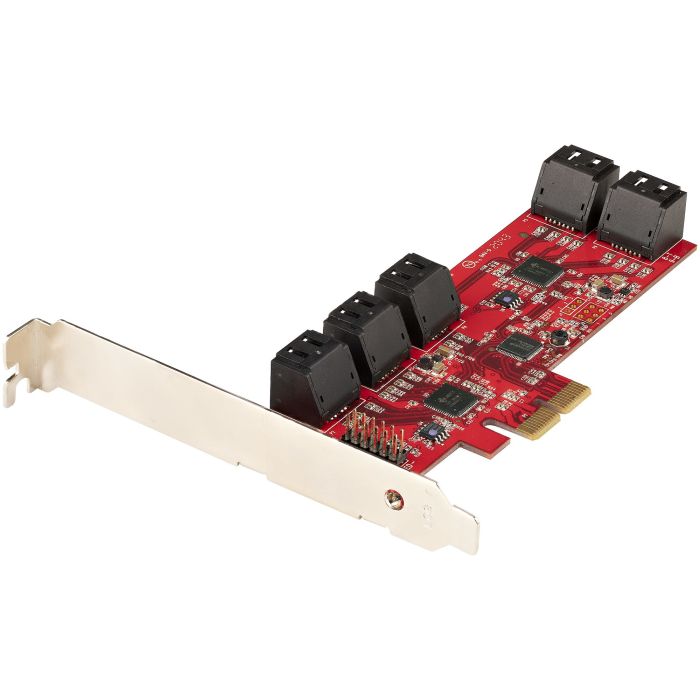

StarTech.com 10P6G-PCIE-SATA-CARD interface cards/adapter Internal
StarTech.com SATA PCIe Card - 10 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1062 Non-Raid - PCI Express to SATA Converter/Adapter. Host interface: PCIe, Output interface: SATA, Expansion card standard: PCIe 2.0. Product colour: Red. Chipset: ASMedia - ASM1062, Data transfer rate (max): 6 Gbit/s. Windows operating systems supported: Windows 7 Ultimate x64, Windows 10, Windows 7 x64, Windows 10 Education, Windows 8, Windows 10..., Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 11.0 Big Sur, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,..., Server operating systems supported: Windows Server 2019, Windows Server 2012 R2, Windows Server 2016. Width: 54 mm, Depth: 139 mm, Height: 16 mm
SKU
V277588
MPN
10P6G-PCIE-SATA-CARD
- HIGH-PERFORMANCE: Add ten SATA III 6Gbps ports to your desktop computer or server using a PCIe x2 slot to connect SATA drives (HDD/SSD); 10-Port SATA PCIe card features 10x SATA connections for connecting drives using SATA cables (sold separately)
- ASM1062: SATA 3 6Gbps card features a single 2 port x2 PCIe Gen 2 host chip (ASM1062) & two 5-port port-multipliers (JMB575) adding 10 SATA (serial ATA) ports, for combined total bandwidth up to 8Gbps; Supports Port Multiplier & NCQ (Native Command Queue)
- COMPATIBILITY: Supports PCIe 2.0, SATA 3.2 & AHCI 1.3 Specs, and previous gens at lower performance; Windows (7+), macOS (10.10+), Linux (2.6.32+); Improved motherboard compatibility with no bifurcation required & no built-in RAID; Supports ATA & ATAPI
- EASY INSTALL: Expansion card w/ plug-and-play setup in full or low-profile PCI-e slot (full-profile bracket installed, low-profile incl); Supports storage management systems such as Storage Spaces (Microsoft) , RAID Assistant (macOS), mdraid/mdadm (Linux)
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This SATA PCIe adapter controller card converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Similar Products from this Vendor
StarTech.com USB31000S network card 5000 Mbit/sSKUV208960MPN: USB31000SQuantity Discounts Available
StarTech.com USB3S2SAT3CB interface cards/adapterSKUV208965MPN: USB3S2SAT3CBQuantity Discounts Available
StarTech.com US1GC30B network card 5000 Mbit/sSKUV208967MPN: US1GC30BQuantity Discounts Available
StarTech.com DP2HDMM1MB video cable adapter HDMI Type A (Standard) BlackSKUV209020MPN: DP2HDMM1MBQuantity Discounts Available
StarTech.com DP2DVI2MM6 video cable adapter BlackSKUV208988MPN: DP2DVI2MM6Quantity Discounts Available
StarTech.com VGA2HDU video cable adapter BlackSKUV208995MPN: VGA2HDUQuantity Discounts Available
StarTech.com DP2HDMI2 video cable adapter 0.21 m BlackSKUV208979MPN: DP2HDMI2Quantity Discounts Available
StarTech.com DP2VGA2 video cable adapter 0.225 m VGA (D-Sub) BlackSKUV208985MPN: DP2VGA2Quantity Discounts Available
SATA III (6Gbps) | PCI Express 2.0 | PCIe x2 Slot | 10x SATA Connectors | 2-Year Warranty
This 10-port SATA III (6Gbps) controller enables you to add 10 SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.
ASM1062 to Deliver 10-Port SATA 6Gbps Performance
Featuring the ASM1062 controller, this SATA card enables the connection of 10 high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via ten individual SATA ports located on the card (SATA cables sold separately).
Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7,8,10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.
Hassle-Free Installation
The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
10P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.
The StarTech.com Advantage
This 10-port SATA III (6Gbps) controller enables you to add 10 SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.
ASM1062 to Deliver 10-Port SATA 6Gbps Performance
Featuring the ASM1062 controller, this SATA card enables the connection of 10 high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via ten individual SATA ports located on the card (SATA cables sold separately).
Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7,8,10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.
Hassle-Free Installation
The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
10P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.
The StarTech.com Advantage
Weight
0.120000
Output Interface
SATA
MPN
10P6G-PCIE-SATA-CARD
Linux Operating Systems Supported
Yes
Server Operating Systems Supported
Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Vendor
StarTech
Windows Operating Systems Supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
MAC Operating Systems Supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur
Piece Gross Weight
0.12 KG
Piece Height (mm)
30
Piece Length (mm)
170
Piece Qty
1
Piece Width (mm)
142
Product Colour
Red
Chipset
ASMedia - ASM1062
Host Interface
PCIe
Package Height
3.0 cm
Package Depth
17.5 cm
Piece Height (mm)
30
Piece Length (mm)
170
Piece Width (mm)
142
Width
5.4 cm
Depth
13.9 cm
Height
1.6 cm
Package Width
14.2 cm
