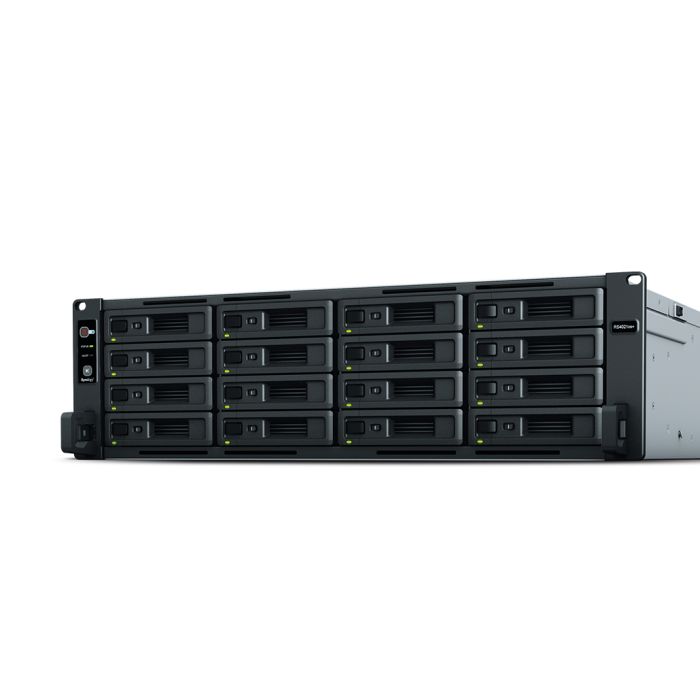

Synology RS4021xs+ 16 Bay Rack Enc
Synology RackStation RS4021XS+. Supported storage drive types: HDD & SSD, Storage drive interface: Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5". Processor family: Intel® Xeon®, Processor manufacturer: Intel, Processor model: D-1541. Internal memory: 16 GB, Internal memory type: DDR4, Maximum RAM supported: 64 GB. Ethernet LAN data rate supported (max): 10000 Mbit/s. Chassis type: Rack (3U), Cooling type: Active, Product colour: Black
SKU
262981
MPN
RS4021XS+
Securing your business assets
The 16-bay RS4021xs+ provides solid data security and lightening-fast performance with over 234K 4K random read IOPS and 6,258 MB/s sequential read throughput1. Together with its 8-core processor, ECC memory, advanced snapshot technology, and built-in 10GbE connectivity, the RS4021xs+ can support large multi-user environments while handling data-intensive workloads.
Engineered for service continuity
The RS4021xs+ ensures mission-critical data is always available, enabling businesses to deliver the best results, even in the face of disaster.
Redundant power
Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans can be replaced without powering down the system.
Maximize service availability
Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover.
Next-generation file system
Btrfs prevents data corruption and reduces maintece overheads with advanced storage technologies and optimized snapshots
Customize to your business
The RS4021xs+ includes two PCIe slots for performance, networking, and storage upgrades enabling it to adapt to any business environment2.
Double bandwidth
Upgrade network bandwidth in minutes by 2x or more with Synology’s range of 10GbE NICs.
SSD cache3
Boost read/write IOPS by up to 16 times by enabling SSD cache with our Synology M.2 NVMe adapter cards and SNV3500 SSDs, or by installing one or more 2.5” SAT5200 SSDs.
Storage expansion
Quickly and easily scale up to 40 drives with two RX1217(RP) expansion units.
Hyper Backup
A comprehensive backup and recovery solution for securing data stored on Synology servers. Backup data locally, to another Synology device, rsync server, or cloud-based storage such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2. Deduplication4, integrity checks, and incremental transfer technology reduce bandwidth and storage used.
Snapshot Replication
Easily schedule flexible point-in-time backups of shared folders and iSCSI LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption.
Storage for virtualization
Synology iSCSI storage supports mainstream virtualization solutions with an easy management interface to enhance usability. VMware vSphere 6.5 and VAAI integration helps offload storage operations. Windows Offloaded Data Transfer (ODX) speeds up data transfer. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Additionally, Synology Storage Console enables even more simplified storage provisioning and management options in VMware and Windows environments
All-in-one surveillance solution
Synology Surveillance Station transforms the RS4021xs+ into a feature-packed Network Video Recorder solution. Support for up to 90 IP cameras5 and video analytics such as motion detection, no idle zone, foreign object detection, and anomaly detection cater to the most common surveillance scenarios.
Secure and private
AES-256 encryption keeps locally-stored footage secure.
Access from anywhere, anytime
Access recordings and live streams whenever you want using a web browser, desktop client, or the DS cam mobile app.
Real-time alerts
Email, SMS, or push notifications alert you when incidents occur or predefined conditions are met.
Weight
23.000000
Conflict-Free Processor
Yes
PCI Express X8 Gen 3 X Slots
2
MPN
RS4021XS+
Internal Memory Type
DDR4
Power Supply Unit Psu Capacity
800 W
Processor Frequency
2.1 GHz
Processor Cores
8
Storage Drive Sizes Supported
2.5, 3.5"
Cooling Type
Active
USB 3 2 Gen 1 3 1 Gen 1 Type A Ports Quantity
2
Number of Storage Drives Supported
16
Supported Storage Drive Types
HDD & SSD
Chassis Type
Rack (3U)
Internal Memory
16 GB
Installed Storage Drive Type
N
Memory Slots
4
Maximum Ram Supported
64 GB
Processor Manufacturer
Intel
Storage Drive Interface
Serial ATA II, Serial ATA III
Processor Model
D-1541
Processor Family
Intel® Xeon®
Vendor
Synology
Type
Storage server
AC Input Voltage
100 - 240 V
Piece Gross Weight
23 KG
Piece Height (mm)
252
Piece Length (mm)
864
Piece Qty
1
Piece Width (mm)
597
Product Colour
Black
Ethernet Lan Data Rate Supported Max
10000 Mbit/s
Memory Form Factor
UDIMM
Processor Boost Frequency
2.7 GHz
Piece Height (mm)
252
Piece Length (mm)
864
Piece Width (mm)
597
Width
48.2 cm
Depth
65.65 cm
Height
13.23 cm
