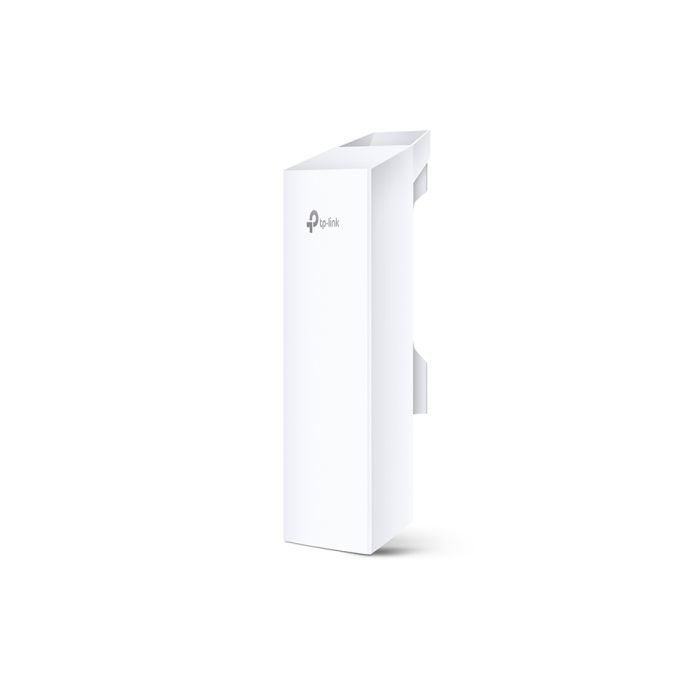

TP-Link CPE510 300 Mbit/s White Power over Ethernet (PoE)
TP-LINK CPE510. Maximum data transfer rate: 300 Mbit/s, Wi-Fi data rate (max): 300 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s. Security algorithms: 64-bit WEP,128-bit WEP,152-bit WEP,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK. Management protocols: TDMA. Management platform: Pharos Control. WAN connection: Ethernet (RJ-45)
SKU
96659
MPN
CPE510
- Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 23dBm/200mw
- System-level optimizations for more than 15km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference
15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference
15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Weight
0.900000
Compatible Operating Systems
Microsoft Windows 98SE, NT, 2000, XP, Vistaâ„¢ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
MPN
CPE510
Storage Relative Humidity H H
5 - 95%
Processor Model
Qualcomm Atheros
Vendor
TP-LINK
Storage Temperature T T
-40 - 70 °C
Cables Included
AC
AC Input Voltage
100 - 240 V
Ethernet LAN Data Rates
10, 100 Mbit/s
Piece Gross Weight
0.9 KG
Piece Height (mm)
106
Piece Length (mm)
270
Piece Qty
1
Piece Width (mm)
132
Product Colour
White
Management Protocols
TDMA
Flash Memory
8 MB
Housing Material
Plastic
Maximum Data Transfer Rate
300 Mbit/s
Networking Standards
IEEE 802.11a, IEEE 802.11n
Package Height
10.6 cm
Package Depth
13.2 cm
Piece Height (mm)
106
Piece Length (mm)
270
Piece Width (mm)
132
Width
22.44 cm
Depth
7.9 cm
Height
6.029999999999999 cm
Package Width
27.0 cm
