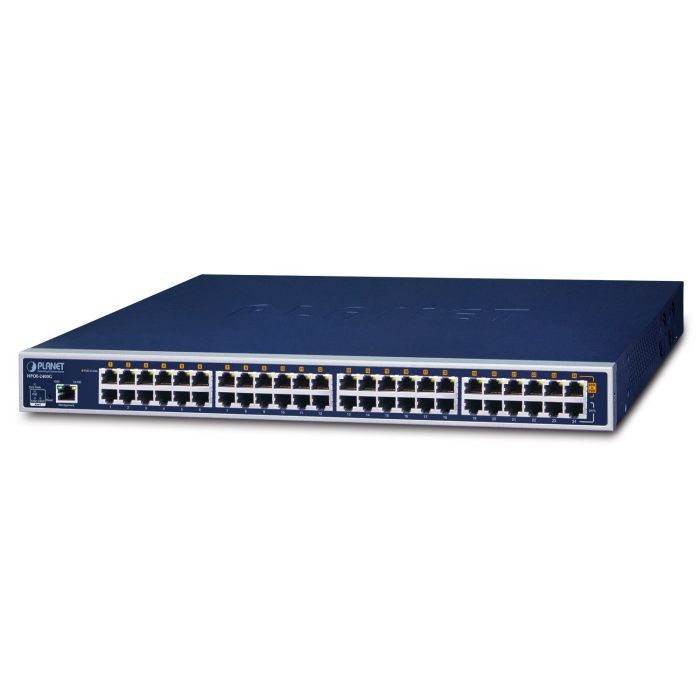

Cablenet 24 Port PoE Injector Gigabit Ethernet 19inch 802.3at (720w)

The HPOE-2400G is a high-density, rack-mountable managed IEEE 802.3at PoE+ injector hub featuring PLANET intelligent PoE functions through web user interface for remote management. It provides 24 10/100/1000BASE-T Ethernet ports featuring 802.3at PoE+ injector with a total PoE budget of 720 watts.

Each PoE port can deliver up to 36-watt power over Cat.5/5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3at/af powered device (PD).

The HPOE-2400G is installed between a regular Ethernet Switch and the PDs. There are totally 48 RJ45 STP ports on the front panel of the HPOE-2400G, of which the 24 ports are on the lower stack functioned as Data input while the other 24 ports are on the upper stack functioned as PoE (Data and Power) output. Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions.

24 x 10/100/1000Mbps Data input
24 x 10/100/1000Mbps Data + Power output
1 x 10/100/1000BASE-T Management Port
Complies with IEEE 802.3at Power over Ethernet Plus mid-span PSE
Up to 24 IEEE 802.3at/802.3af devices powered
720-watt PoE budget
Supports PoE power up to 30.8 watts (802.3at PoE+)/15.4 watts (802.3af PoE) for each PoE port
Automatically detects PD
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
Total PoE power budget control
PoE Management - Per port PoE power schedule, PoE function enable/disable, per port PoE function enable/disable, PoE port power feeding priority, PD classification detection, Over temperature protection, PD alive check, PoE schedule

SEE TECHNICAL DATA SHEET FOR FULL DETAILS
