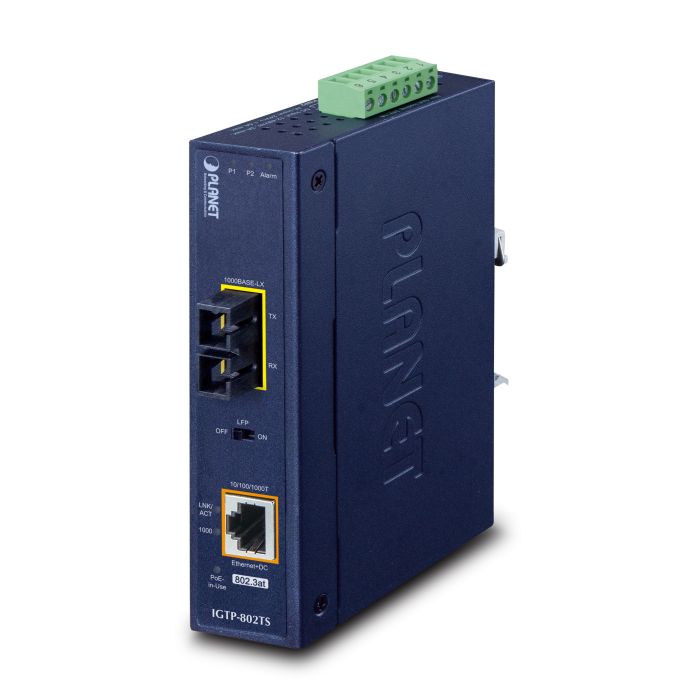

Cablenet IP30 Industrial Gigabit PoE + SFP Media Converter

PLANET IGTP-80xT Industrial Gigabit Media Converter combines Ethernet media conversion (from 1000BASE-X to 10/100/1000BASE-T) with 802.3at Power over Ethernet Plus (PoE+) injector to deliver both up to 30 watts of power output and high data transmission speed to PDs (powered devices) installed in a remote area where sufficient and reliable power input is required.

Its 1000BASE-X fibre optic uplink port provides long distance, high speed and stable data transmission to a remote core network. The special and convenient power system of the IGTP-80xT supports 12~48V DC power input or 24V AC power input for power redundancy and operational flexibility.
Being able to operate under the temperature ranging from -40 to 75 degrees C and with an IP30 rugged case, the IGTP-80xT can be placed in almost any difficult environment.

1-port 10/100/1000BASE-T RJ45 with IEEE 802.3af /802.3at PoE+ Injector
1 1000BASE-SX/LX SC Fibre interface (IGTP-802T/IGTP-802TS)
1 SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver dual mode (IGTP-805AT)
Complies with IEEE 802.3at/af PoE Plus end-span PSE
1 IEEE 802.3at/af device powered
Supports PoE Power up to 30.8 watts for PoE port
Provides DC 52V power over RJ45 Ethernet cable to PD with Ethernet port
Auto-detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation
Remote power feeding up to 100m
IEEE 802.3at/af splitter devices compatible
LED Indicators
System: Power 1, Power 2 and Fault LED
Fibre port: LNK/ACT
10/100/1000Base-T port: LNK/ACT, 1000, PoE-in-use
DIP switch: LFP (Link Fault Passthrough) mode selection

SEE TECHNICAL DATA SHEET FOR FULL DETAILS
