Cablenet High Power PoE Splitter IEEE8023at (12/24v)

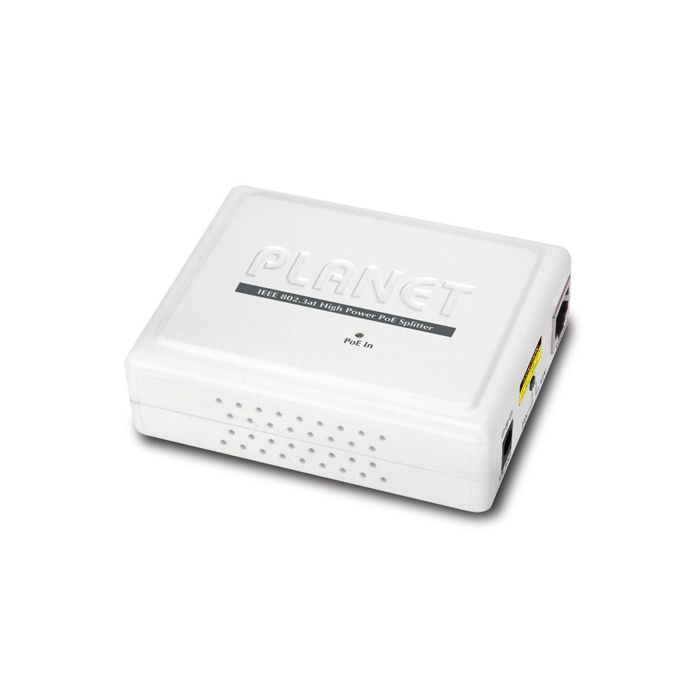

PLANET IEEE POE-162S 802.3at Gigabit Power over Ethernet Plus Splitter complies with IEEE 802.3at Power over Ethernet Plus standard that supports a maximum of 25.5 watts of input power. The POE-162S provides the following key features:


IEEE 802.3at Power over Ethernet Plus standard compliant
12V/24V DC power output through DIP switch
Passive 10/100/1000BASE-T speed duplex mode
Quick and easy high power PoE Plus network deployment

The POE-162S can split the 52-56V DC power over the Ethernet cable into selectable 12V or 24V DC power output. It is designed specifically to fulfil the demand of higher power required network equipment, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome cameras, colour touch-screen/Video and Voice over IP (VoIP) telephones, multi-channel (11a/ac/b/g/n) wireless LAN access points and other network devices that need higher power to work normally but can't be satisfied with IEEE 802.3af PoE standard. The POE-162S IEEE 802.3at Gigabit Power over Ethernet Plus Splitter is an ideal solution that enables network device with high power consumption to be powered directly via the RJ45 interface without the need of power outlets and electrical cabling.

1 x PoE Power + Data input
1 x Data output
1 x DC out plug connector
Complies with IEEE 802.3at Power over Ethernet Plus PD
Splits the 52-56V DC power over RJ45 Ethernet cable into 12V/24V DC output
Up to 1 non-IEEE 802.3at device powered
Auto detects IEEE 802.3at PoE compliant device, protects devices from being damaged by incorrect installation
Adjustable two different output voltage options (12V, 2A; 24V, 1A) to fit various devices
Distance up to 100 meters
IEEE 802.3af PoE injector devices compatible SEE TECHNICAL DATA SHEET FOR FULL DETAILS
