Cablenet High Power PoE+ IEEE802.3at Giga Ethernet Injector - 30w (Pack)

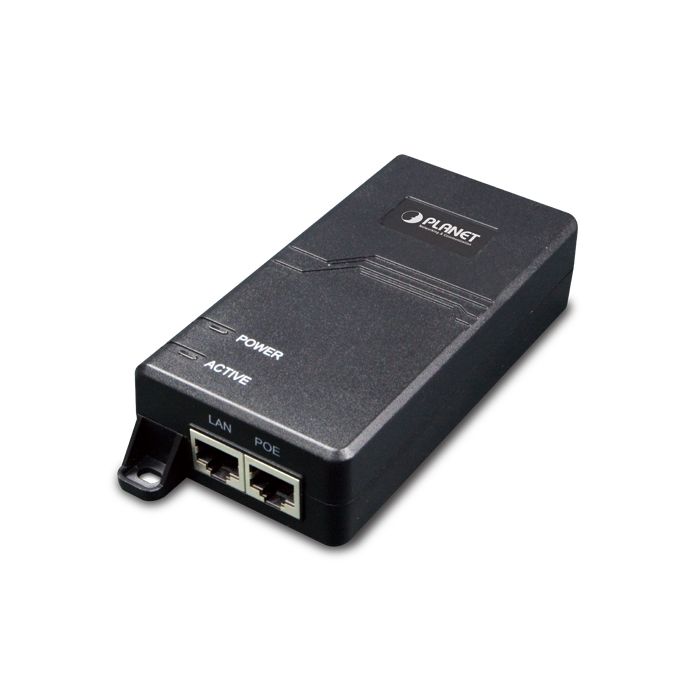

The POE-163 is a wall-mountable, single-port Gigabit 802.3at PoE+ injector with internal power supply in compact housing. Carrying both Ethernet data and power simultaneously, the POE-163 helps users to utilize just one Ethernet cable to easily install and deploy IP camera, wireless AP or VoIP phone networking in environments where power outlet is hard to find.

With concepts of Easy to install, Plug and Play and Simple troubleshooting for business and home users, the POE-163 is an all-in-one, single-port PoE+ injector with internal power supply. In the compact size housing, the POE-163 provides one 100-240V AC input socket on its front panel, two LEDs (System POWER and PoE ACTIVE) on the top side and two RJ45 ports (POE port and LAN port) on the rear panel. Simply plug in the Ethernet cables and power cord, and the POE-163 is ready to provide high-speed network communication and high power PoE+ injector functions simultaneously with no need of software configuration.

1 x Data + Power output
1 x Data input
1 x AC 100-240V input power socket
1-port Gigabit High Power over Ethernet Mid-span PSE
IEEE 802.3at Power over Ethernet Plus compliant
Backward compatible with IEEE 802.3af Power over Ethernet
Supports PoE Power up to 30 watts for PoE port
Up to 1 IEEE 802.3at device powered
Provides DC 50-54V power over RJ45 Ethernet cable to device with Ethernet port
Auto-detection of PoE IEEE 802.3at/af equipment and devices that could be damaged by incorrect installation
Remote power feeding up to 100m
All-in-one design with internal power supply
Compact-size plastic case
LED indicators for Power LED and Active LED (PoE ready-in-use)

SEE TECHNICAL DATA SHEET FOR FULL DETAILS
