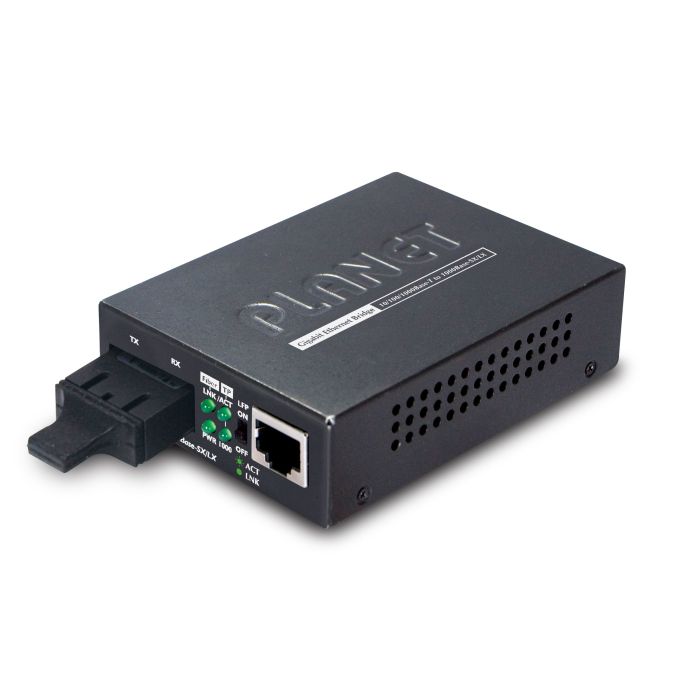

Cablenet Media Converter Gigabit 10/100/1000-1000LX SM (SC)

Providing the flexibility of 10/100/1000Mbps Ethernet Media via RJ45 port and highly stable Gigabit fibre performance, PLANET GT-802, GT-802S, GT-805A and GT-806A/B media converters support conversion between 10/100/1000BASE-T and 1000BASE-SX/LX network. There are SC/SFP/WDM connectors with single-mode or multi-mode media as required. The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively.

Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-SX/LX
TP port supports 10/100/1000BASE-T auto-negotiation and auto-MDI/MDI-X
1000BASE-LX: 9/125?m single-mode cable provides long distance for 10km (GT-802S)
1000BASE-T: 2-pair Cat5e/6 UTP cable, up to 100 meters
Layer 2 key Features
IEEE 802.3x full-duplex flow-control and back-pressure in half-duplex eliminate the loss of packets
Supports auto MDI/MDI-X function
Store-and-Forward mechanism
Non-blocking full wire-speed forwarding rate
Media conversion between 10/100/1000BASE-T and 1000BASE-SX/LX
Fibre media allows
Multi-mode fibre using SC/LC/WDM connector
Single-mode fibre using SC/LC/WDM connector
Compact size for working with PLANET MC family media chassis (MC-700/MC-1500/MC-1500R/MC-1500R48)
Wall-mountable design
LED indicators for easy network diagnostics
Provides DIP switch for LFP function (Disable/Enable) setting
OAM TS-1000 supported
9K Jumbo Frame Supported
Choice of fibre-connector from SC, LC and WDM, multi-mode/single-mode fibre for 1000Base SFP interface
Compact in size, easy installation

SEE TECHNICAL DATA SHEET FOR FULL DETAILS
