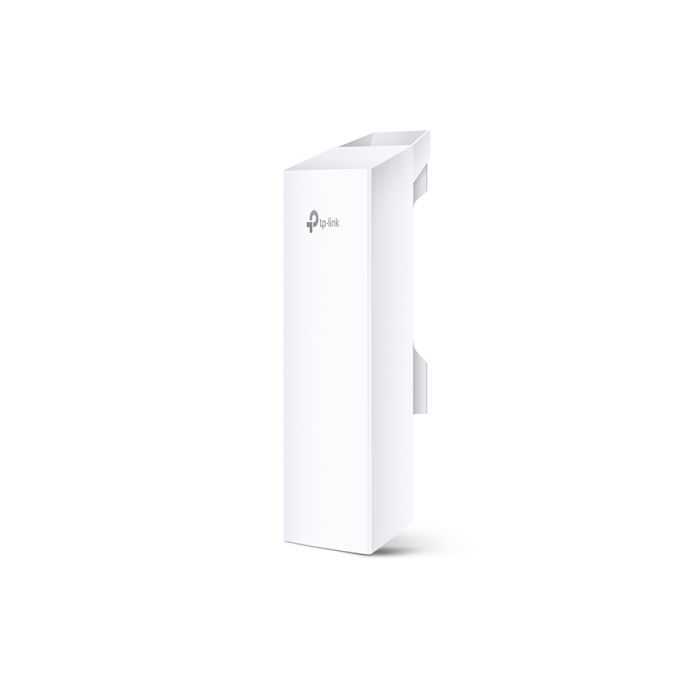

TP-Link CPE210 300 Mbit/s White Power over Ethernet (PoE)

SKU
98898
MPN
CPE210
TP-LINK 2.4GHz 300Mbps 9dBi Outdoor CPE. Maximum data transfer rate: 300 Mbit/s, Maximum data transfer rate (2.4 GHz): 300 Mbit/s, Frequency band: 2.4 - 2.483 GHz. Security algorithms: 64-bit WEP,128-bit WEP,152-bit WEP,SSID,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK. Management protocols: TDMA. Management platform: Pharos Control. AC input voltage: 100 - 240 V, Input current: 0.8 A, AC input frequency: 50/60 Hz
  • Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 27dBm/500mw
  • System-level optimizations for more than 5km long range wireless transmission
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
  • Centralized Management System – Pharos Control
Enquiry
TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.

Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).

Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interference

5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.

TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
Power Over Ethernet Poe
Yes
Web Based Management
Yes
Antenna Type
Internal
Compatible Operating Systems
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Output Voltage
24 V
MPN
CPE210
Storage Relative Humidity H H
5 - 95%
Processor Model
Qualcomm Atheros
Vendor
TP-LINK
Storage Temperature T T
-40 - 70 °C
Cables Included
AC
AC Input Voltage
100 - 240 V
Package Height
10.6 cm
Package Depth
13.2 cm
Product Colour
White
Width
22.44 cm
Depth
7.9 cm
Height
6.029999999999999 cm
Package Width
27.0 cm
Management Protocols
TDMA
Flash Memory
8 MB
Maximum Data Transfer Rate
300 Mbit/s
Networking Standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Is on Sale
No
Package Height
10.6 cm
Package Depth
13.2 cm
Width
22.44 cm
Depth
7.9 cm
Height
6.029999999999999 cm
Package Width
27.0 cm
